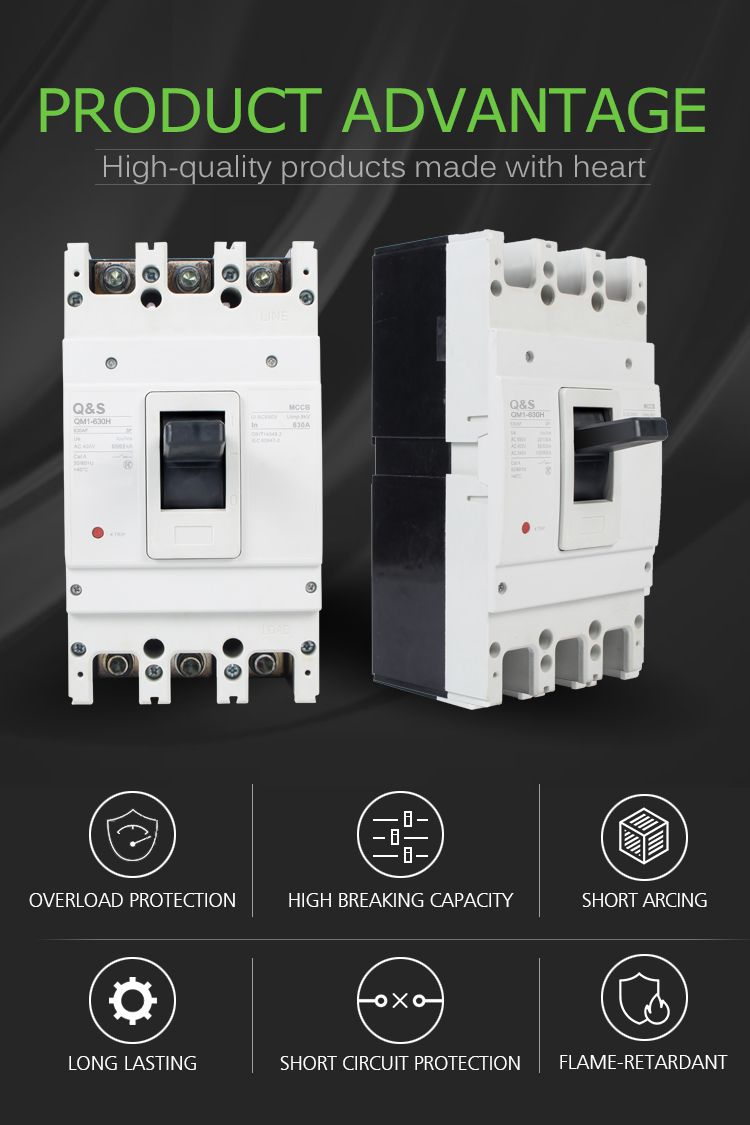

QM1 Thermo-magnetic molded case circuit breaker

● Altitude up to 2000m;
● Ambient medium temperature should be within -5℃ to +40℃ (+45℃ for marine products);
● It can withstand the effect of damp air;
● It can withstand the effect of moulds;

description

Ambient and Installation Conditions

● Altitude up to 2000m;
● Ambient medium temperature should be within -5℃ to +40℃ (+45℃ for marine products);
● It can withstand the effect of damp air;
● It can withstand the effect of moulds;
● It can withstand the effect of nuclear radiation;
● The max inclination is 22.5℃.
● It still can work reliably when the ship subjects to normal vibration;
● It can still work reliably if the product subjects to the earthquake (4g).
● Places where the surrounding medium is free from explosion danger, and far away from gas or conductive dust that would erode the metal or destroy the insulation;
● Keep away from rain or snow.


Components of Circuit Breaker


QM1 Thermo-magnetic molded case circuit breaker


Product Selection Guide

QM1 Thermo-magnetic molded case circuit breaker

QM1125CP4
Product codeFrame sizeCurrent classCode of control circuit source voltagePole number
Moulded-case
circuit breaker
125 160 250 400 630 800
Note:
125 is upgraded type of 63 frame
160 is upgraded type of 100 frame
250 is upgraded type of 225 frame
630 is upgraded type of 400 frame

CSHP: electric operation
Z: rotary handle
W: direct operation
3: 3-pole
4: 4-pole
12515/1018/1525/18
16020/1525/1835/25
25020/1525/1835/25
400
35/2550/35
630
35/2550/35
1250
50/3565/50


300125A2A
Release type and internal accessoryRated current (A)ApplicationCode of four-pole product
The first digit represents release type
2: Has instantaneous release only
3: Complex release Note:
Later two digits are the code of accessories
(see accessory table)
12510, 16, 20, 25, 32, 40, 50, 63, 80, 100, 1251: power distribution
2: motor protection
A: N-pole without protection cannot close or open
B: N-pole without protection can close and open
C: N-pole with protection can close and open
D: N-pole with protection cannot close or open
16063, 80, 100, 125, 140, 160
250100, 125, 140, 160, 180, 200, 225, 250
400250, 300, 315, 350, 400
630400, 500, 630
1250500, 630, 700, 800,1000,1250


Q1D1Q2
Accessory voltageElectric operation voltageInstallation methodsInstall wiring board or not
Under-voltage releaseShunt releaseAuxiliary alarmDC1 Electric OperationDC3 Electric OperationQ: Front-board
H: Back-board
C: Plug-in type
1: No
2: Yes
Q1: AC220VF1: AC220VJ1: AC125VD1: AC220VD5: AC230V
Q2: AC240VF2: AC380VJ2: AC250VD2: AC230VD6: AC110V
Q3: AC380VF3: DC110VJ3: DC125VD3: AC380VD7: DC220
Q4: AC415VF4: DC24VJ4: DC24VD4: AC400VD8: DC110




D9: AC110-240V




D10: DC100-220V

Note:
Adaptable voltages for two electric
operations. Please refer to the
introduction of external accessory.


Main Performance Indexes

Frame current (A)125160
ModelQM1-125CQM1-125SQM1-125HQM1-160CQM1-160SQM1-160H
Pole number1, 2, 3, 4
2, 3, 4


QM1 Thermo-magnetic molded case circuit breakerQM1 Thermo-magnetic molded case circuit breaker
Rated current (A)10, 16, 20, 32, 25, 40, 50, 63, 80, 100, 12563, 80, 100, 125, 140, 160
Rated voltage (V)AC400VAC400V
Rated insulation voltage (V)AC1000VAC1000V
Short-circuit breaking capacity(KA)Icu/IcsAC400V15/1018/1525/1825/1025/1835/25
Operating cycle numberElectrical life60003000
Mechanical life90007000
Outline dim(mm)

a-b-c-ca


QM1 Thermo-magnetic molded case circuit breaker

1P25-130-68-90---
2P50-130-68-9060-155-68-9060-155-68-9060-155-88-115
3P75-130-68-9090-155-68-9090-155-68-9090-155-88-115
4P100-130-68-90120-155-68-90120-155-68-90120-155-88-115
Weight (kg)1P0.32---
2P0.50.5511.1
3P0.550.651.11.2
4P0.650.81.41.5
Electric operating device (MD)
External driving operating handle
Automatic releaseThermal electromagnetic type


Frame current (A)250400
ModelQM1-250CQM1-250SQM1-250HQM1-400SQM1-400H
Pole number3, 43, 4

QM1 Thermo-magnetic molded case circuit breakerQM1 Thermo-magnetic molded case circuit breaker
Rated current (A)100, 125, 140, 160, 180,200, 225, 250250, 315, 350, 400
Rated voltage (V)AC400VAC400V
Rated insulation voltage (V)AC1000VAC1000V
Short-circuit breaking capacity(KA)Icu/IcsAC400V25/1525/1835/2535/2550/35
Operating cycle numberElectrical life30002000
Mechanical life70004000
Outline dim(mm)

a-b-c-ca


QM1 Thermo-magnetic molded case circuit breaker


3P105-165-68-92105-165-88-115140-257-103-155
4P140-165-68-92140-165-88-115184-257-103-155

Weight (kg)
2P1.51.75.5
3P1.92.17

Electric operating device (MD)
External driving operating handle
Automatic releaseThermal electromagnetic type


Frame current (A)6301250
ModelQM1-630SQM1-630HQM1-800SQM1-1250H
Pole number3, 43, 4

QM1 Thermo-magnetic molded case circuit breakerQM1 Thermo-magnetic molded case circuit breaker
Rated current (A)250, 315, 350, 400, 500, 630500, 630, 700, 800,1000,1250
Rated voltage (V)AC400VAC400V
Rated insulation voltage (V)AC1000VAC1000V
Short-circuit breaking capacity(KA)Icu/IcsAC400V35/2550/3550/3565/50
Operating cycle numberElectrical life20001500
Mechanical life40004000
Outline dim(mm)

a-b-c-ca


QM1 Thermo-magnetic molded case circuit breaker


3P140-257-103-155210-275-103-155
4P184-257-103-155280-275-103-155

Weight (kg)
2P5.79.5
3P7.512.5

Electric operating device (MD)
External driving operating handle
Automatic releaseThermal electromagnetic type
